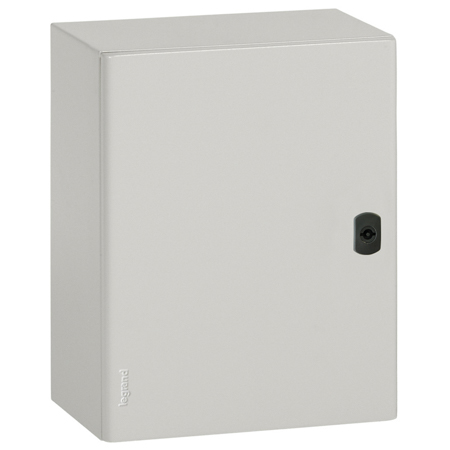

Legrand, Atlantic metal cabinet - vertical version - 800 x 600 x 300 mm - 1 door

Atlantic metal cabinets supplied with plain plate - IP 55/IP 66 - IK 10 - Type 4x - Type 12IP 66 according to standards IEC EN 60529 for 1-door cabinets - IP 55 according to standards IEC EN 60529 for 2-door cabinetsIK 10 according to standards IEC EN 62262LCIE 17 07 90 10AType 4x, 1 door, Type 12, 2 doors - cULus, Bureau VeritasEMC attenuation 20 dB (for an EMC attenuation from 40 to 50 dB at 1 GHz, please consult us)Excellent resistance to corrosion and chemical agents80 μm thick textured polyester coating. Anti-corrosion treatment for hinges and pinsReversible door - Fitted with leverSupplied with double bar lock - Self-centering positioning system for the equipmentCompatible with all Atlantic accessories Low cable entries RAL 7035 - Optional depth adjustement for cabinets 400 mm depth, with slide rails Cat.No 0 367 45
