Single-Phase UPS

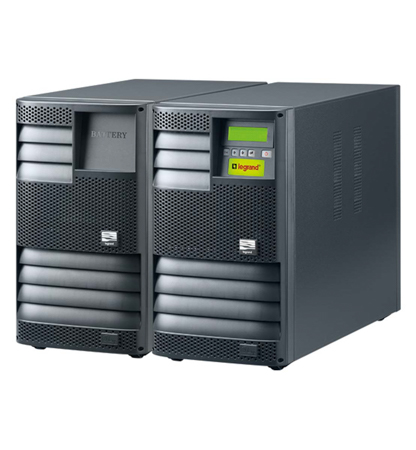

Legrand, UPS, MegaLine 10000/2

MEGALINE UPS is a single phase uninterruptible power supply with high frequency PWM technology, On Line Double Conversion type, modular architecture, with the possibility of N+X redundant configuration.
Delivers a rated power equipped with valve-regulated hermetic-type accumulator batteries, contained inside the UPS in a specific compartment or in one or more external cabinets.
Warranty:2 year limited warranty

Expected delivery of quantity in 128 days



Model MegaLine 10000/2
Type Modular
Number of batteries -
Input frequency 50 Hz or 60Hz
(autosensing or selected by the user)
Net Weight (kg) 34 + 80
(for a back-up time of 11’ – 80% of the load)
Measurements H x L x D (mm) 2x(270x570x475) mm
Type of Batteries 9 Ah (12V)
Output frequency 50 Hz or 60 Hz
Protection protection against any interference in the electrical mains
Display & Signels -
Nominal power (VA) 10000
Active Power ( W) 7000
Input voltage 230 V
