Three-Phase UPS

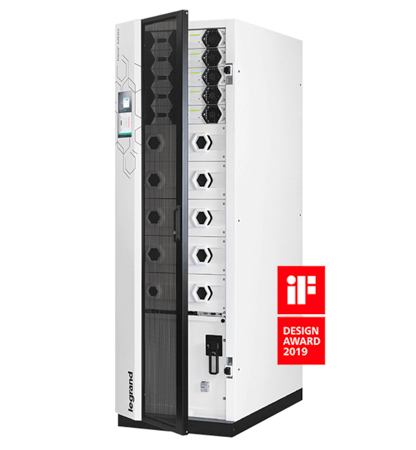

Legrand, UPS, KEOR MOD 25 UP to 125 kW

Keor MOD is a three-phase uninterruptible power supply on line double conversion with PWM High-Frequency technology, modular architecture with the possibility to have N+X redundancy.
It delivers a rated power from 25 to 250kW, each unit can be connected in parallel to identical or different units up to 600 kW.
Batteries are lead acid, sealed, maintenance free, valve regulated and arranged inside the UPS up to 125kW.
Keor MOD is the ideal solution for all critical computer applications such as DATA CENTERS.
Status:Active
Warranty:2 year limited warranty
SKU:LG-KEORMOD25-125

Expected delivery of quantity in 128 days

Quantity:

LEGRAND, UPS, KEOR MOD 25 UP TO 125 KW

Model KEOR MOD 25 UP to 125 kW
Type Modular
Max Charging 5 A each power module
Input Voltage Range 400V 3ph+N+PE
Measurements H x L x D (mm) 600 x 970 x 1990
Type of Batteries VRLA Lead Acid, maintenance free (long-life on request)
output Nominal Voltage 380, 400, 415V 3ph+N+PE
Input Nominal power (VA) 25 up to 125
Input frequency 50Hz or 60Hz (autosensing)
Output frequency 50 Hz or 60 Hz (selectable)
Net Weight (kg) 205 kg
