Warranty:1 year limited warranty

Expected delivery of quantity in 110 days

Brand Rittal
Total cooling output to DIN EN 14511 : Cooling output L35 L35/50 Hz: 0.77 kW
Cooling output L35 L35/60 Hz: 0.79 kW
Cooling output L35 L50/50 Hz: 0.52 kW
Cooling output L35 L50/60 Hz: 0.47 kW
Air throughput (unimpeded air flow) : External circuit: 800 m³/h
Internal circuit: 585 m³/h

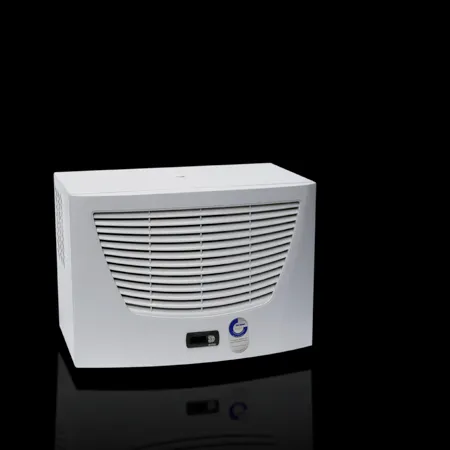

Product description : Energy-efficient Blue e roof-mounted cooling units with integral e-Comfort controller and electric condensate evaporation as standard.
Dimensions : Width: 597 mm
Height: 417 mm
Depth: 380 mm
Material : Sheet steel
Benefits : May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller
Rated operating voltage : 230 V, 1~, 50 Hz/60 Hz
Article number: : SK 3359.500
Colour : RAL 7035
Supply includes : Condenser with hydrophobic RiNano coating
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Design : roof-mounted
Energy efficiency ratio (EER) 50/60 Hz L35 L35 : Refrigeration factor L35 L35 (EER) 50 Hz: 2.28
Refrigeration factor L35 L35 (EER) 60 Hz: 1.85
Note : The roof-mounted cooling unit 3273.500 is also suitable for office applications, thanks to its low noise level.
Start-up current max. : At 50 Hz: 9.2 A
At 60 Hz: 9 A
Rated current max. : At 50 Hz: 2.8 A
At 60 Hz: 3.7 A
Protection category to IEC 60 529 : External circuit IP 34
