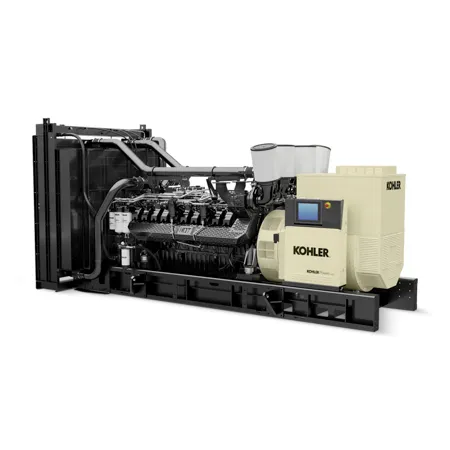

Kohler, Diesel Generator, 1600REOZMD , 60 Hz
KOHLER diesel generatorĀ are built to power any application including hospitals, gas stations, data centers, airports and more.
- Standby Range (kW/kVA) : 1160-1600/1050-1450
- Prime Range (kW/kVA) : 1450-2000/1313-1813
- Frequency : 60 Hz
- Fuel Type : Diesel
- Speed : 1800 RPM
Standard Features KOHLER provides one-source responsibility for the generating systems and accessories The generator set and its components are prototype-tested, factory-built, and production-tested A standard one-year limited warranty covers all systems and components. Two-, five-, and ten-year extended warranties are also available. Other Features Kohler designed controllers for guaranteed system integration and remote communication The low coolant level shutdown prevents overheating (standard on radiator models only) An electronic, isochronous governor delivers precise frequency regulation Multiple circuit breaker configurations Alternator Features The pilot-excited, permanent-magnet(PM) alternator provides superior short-circuit capability NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field Self-ventilated and drip-proof construction Superior voltage waveform from a two-thirds pitch stator and skewed rotor and digital solid-state, volts-per-hertz voltage regulator with ±0.25% no-load to full-load regulation Brushless alternator with brushless pilot exciter for excellent load response
Model | 1600REOZMD |
Brand | Kohler |
Speed | 1800 RPM |
Fuel Type | Diesel |
Frequency | 60 Hz |
kW | 1001-2000 |
Duty Ranges | Standby / Prime |
Standby Range (kW/kVA) | 1160-1600/1050-1450 |
Prime Range (kW/kVA) | 1450-2000/1313-1813 |
